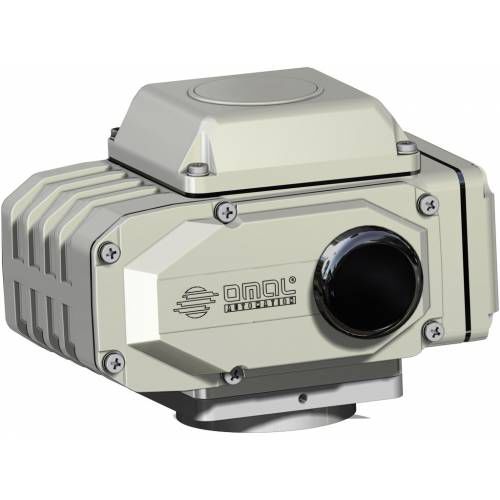

Electric valve actuator AE series

90°IP66IP65

Service 50% Insulation resistance 100 M /500 Vdc Tension insulation 1500 Vac/1 minute Motor with Class E insulation 0°C, we suggest anti-condensate elements) Protection according to NEMA 4,4X rules (IP65) Coupling flange for the valve from F03 to F14: ISO 5211. Auto-reset thermostatic protection in the motor. Open/close limit switch with cams adjustable along the whole stroke Auxiliary limit switches with cams adjustable along the whole stroke Safety adjustable mechanical limit switches. Graduated visual position indicator Detachable lever for manual operation Electric connections with screw terminals Locking of supply cables by means of cable presses. Maximum working noise <70 dB (A). OPTIONAL (MUST BE REQUESTED WHEN PLACING THE ORDER) Torque limiters. Positional potentiometer 135 / 500 / 1K ohms. Positional converter R/I 4÷20 mA DC (***). Space heater. Emergency gear box (available on AE100 and AE200). Drive socket. * AE 10÷AE 200 only ** AE 40÷AE 200 only *** AE 100÷AE 2000 only (Vac)
