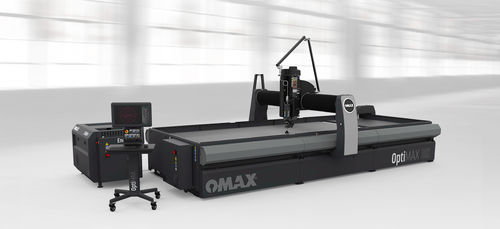

Abrasive water-jet cutting machine OPTIMAX 80Xfor composite materialsfor metalfor plastics
Add to favorites
Compare this product
Characteristics
- Technology
- abrasive water-jet
- Material
- for metal, for plastics, for composite materials, for glass
- Product handled
- sheet metal
- Control type
- CNC
- Applications
- for industrial applications
- Phase
- three-phase
- Configuration
- gantry type
- Other characteristics
- high-precision, high-performance, linear, programmable
- X travel
4,060 mm
(159.84 in)- Y travel
2,030 mm
(79.92 in)- Z travel
304 mm, 305 mm
(12 in, 12 in)- Cutting speed
8.89 m/min
- Repeatability
0.025 mm
(0.001 in)- Overall length
7,920 mm, 9,960 mm
(312 in, 392 in)- Overall width
3,940 mm
(155 in)- Height
3,050 mm
(120 in)- Weight
4,150 kg
(9,149.18 lb)
Description
The pinnacle in high performance precision abrasive waterjet cutting machining.
• Backed by our exclusive IntelliMAX Premium Software
• Standard Rapid Water Level Control for cleaner, safer, and quieter submerged cutting completes most work below 80 dBA
OMAX Benefits
• Designed and manufactured at the OMAX factory in Kent, Washington, USA
• Does not create heat-affected zones or mechanical stresses
• Machines a wide range of materials and thicknesses, from metals and composites to glass and plastics
• No tool changes & minimal fixturing dramatically reduce setup
