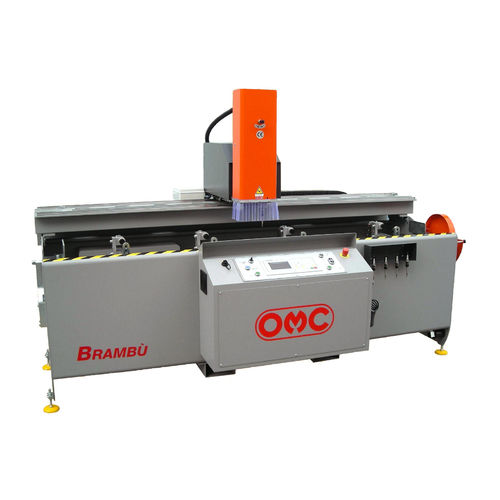

3-axis machining center BRAMBÙ 3+1verticalfor aluminumfor steel
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Machined material
- for aluminum, for steel, for PVC
- X travel
2,500 mm
(98.43 in)- Y travel
270 mm
(10.63 in)- Z travel
220 mm
(8.66 in)- Rotational speed
Max.: 18,000 rpm
(113,097 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
2.2 kW
(2.99 hp)
Description
Milling center controlled by CNC, for processing aluminum profiles PVC and steel.
3 X, Y and Z axes controlled for machining on preset parametrizable macros.
Pneumatic rotation of the work surface from 0 ° – 90 ° – 180 ° and intermediate degrees.
Electro-spindle power 3 Hp with speed variator 0 -18.000 rpm.
Easy machine programming.
The presence of the operator is not necessary on board the machine during processing.
Thanks to the double line it is possible work profiles even longer than the useful field.
Useful field of work:
X 2500 mm
Y 270 mm
Z 220 mm
Optional: possibility to mount a electrospindle with tool change quick, pneumatic manual Cone ISO 20.
