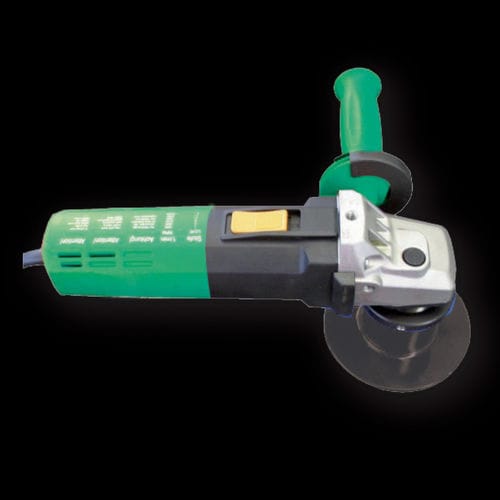

Electric beveling machine ART. HKF series
portablefor internal and external edgeswith adjustable angle

Electric beveling machine - ART. HKF series - OMCA - portable / for internal and external edges / with adjustable angle
Electric beveling machine - ART. HKF series - OMCA - portable / for internal and external edges / with adjustable angle
Electric beveling machine - ART. HKF series - OMCA - portable / for internal and external edges / with adjustable angle - image - 2
Electric beveling machine - ART. HKF series - OMCA - portable / for internal and external edges / with adjustable angle - image - 3
Electric beveling machine - ART. HKF series - OMCA - portable / for internal and external edges / with adjustable angle - image - 4
Electric beveling machine - ART. HKF series - OMCA - portable / for internal and external edges / with adjustable angle - image - 5
Electric beveling machine - ART. HKF series - OMCA - portable / for internal and external edges / with adjustable angle - image - 6
Add to favorites
Compare this product


Characteristics

Operation
electric
Type
portable
Applications
for internal and external edges
Other characteristics
with adjustable angle, fixed-angle
Power

1,400 W, 2,000 W
(1.9 hp, 2.72 hp)

Rotational speed

Max.: 10,000 rpm
(62,831.85 rad.min-1)

Min.: 3,000 rpm
(18,849.56 rad.min-1)

Chamfer angle

Max.: 60 °

Min.: 30 °

Description

ART. HKF 125 - Motor Power 230 VOLT 50 HZ 1400 WATT - Bevel Length max 5 mm max 0.196in - Bevel Angle 45° – (*)30° – 60° - Pipe from Ø 50 From 1.97in - Cutter Z3 - Cutter Speed 3000 – 10000 RPM - Dimensions and weight 100x400x h 250 mm – KG. 5 3.93 x 15.75 x h9.8in – 11lbs - Bevel Radius R3, R4 ART. HKF 230 - Motor Power 230 VOLT 50 HZ 2000 WATT - Bevel Length max 10 mm max 0.196in - Bevel Angle 45° – (*)30° – 60° - Pipe from Ø 50 From 1.97in - Cutter Z3 - Cutter Speed 6600 RPM - Dimensions and weight 150x450x h 280 mm – KG. 10 5.9 x 17.7 x h11.0in – 22lbs - Bevel radius R3, R4
