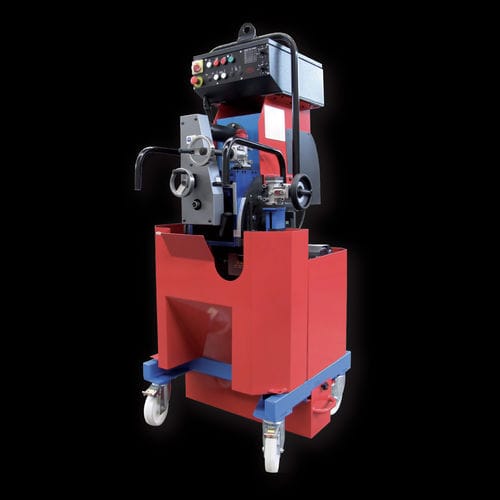

Beveling machine with automatic feeder Art. 920 J BEVELelectricmobilefor sheet metal
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Type
- mobile
- Applications
- for sheet metal
- Other characteristics
- with adjustable angle, with automatic feeder
- Power
5,500 W
(7.48 hp)- Rotational speed
Max.: 900 rpm
(5,654.87 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Chamfer angle
Max.: 35 °
Min.: 0 °
Description
- Motor Power 230/400 VOLT. 3 PHASE 5,5KW.( 5500W) 50/60 HZ
- Bevel Length max 64 mm max 2.5in
- Bevel Angle 0° – 35°
- Plate Thickness 8 – 100mm – (*) 8 – 200 mm 0.315 – 3.93in – (*) 0.315 – 7.87in
- Facing max 90 mm max 3.54in
- J Bevel MAX 90 mm MAX 3.5IN
- Cutter Ø 80 mm – Z6 – R8 – (*)R10 Ø 3.14in – Z6 – R8 – (*)R10
- Cutter Speed 0 – 900 RPM
- Feeding Speed 0 – 1,4 mt/min 0 – 4.59 ft/min
- Dimensions and weight 993x831x h1954 mm – Kg. 420 39.1 x 32.7 x h76.9in – 924 lbs
- Digital Display YES
