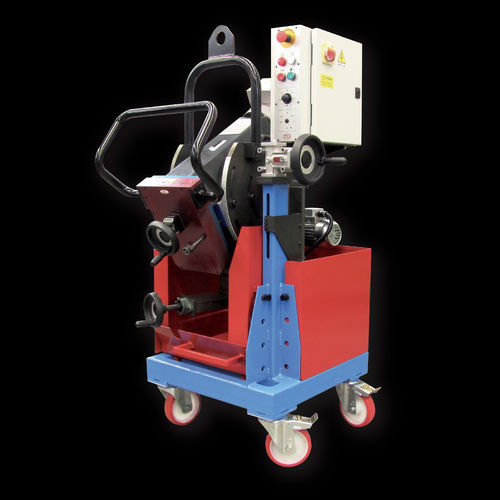

Beveling machine with adjustable angle Art. 930 Reverseelectricmobilefor sheet metal
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Type
- mobile
- Applications
- for sheet metal
- Other characteristics
- with adjustable angle
- Power
5,500 W
(7.48 hp)- Rotational speed
Max.: 750 rpm
(4,712.39 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Chamfer angle
Max.: 60 °
Min.: 0 °
Description
- Motor Power 230/400 VOLT. 3 PHASE 5,5KW.( 5500W) 50/60 HZ
- Bevel Length max 59 mm max 2.32in
- Bevel Angle 0° – 60°
- Plate Thickness 8 – 60 mm (*) 8 – 100 0.315 – 2.36in (*) 0.315 – 3.93in
- Facing max 60 mm max 2.36in
- Cutter Ø 63 mm Z5 Ø 2.48in Z5
- Cutter Speed 750 RPM – (*) 0 – 750 RPM
- Feeding Speed 0 – 1,4 mt/min 0 – 4.59 ft/min
- Dimensions and Weight 1009x729xh1505 mm – Kg. 205 39.7×28.7xh59.25 in – 451lbs
- Digital Display YES
