Beveling machine with adjustable angle ART. 930 BIG REVERSE
electricmobilefor sheet metal

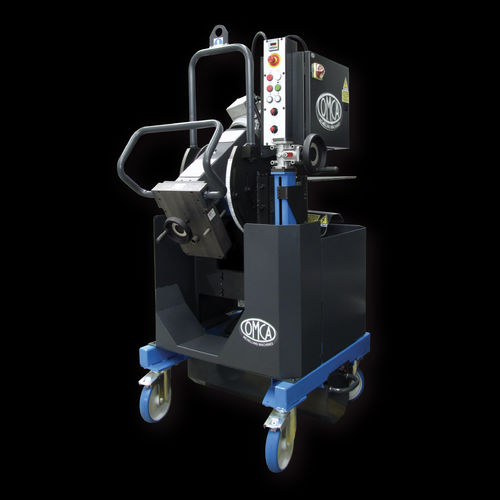

Beveling machine with adjustable angle - ART. 930 BIG REVERSE - OMCA - electric / mobile / for sheet metal
Beveling machine with adjustable angle - ART. 930 BIG REVERSE - OMCA - electric / mobile / for sheet metal
Beveling machine with adjustable angle - ART. 930 BIG REVERSE - OMCA - electric / mobile / for sheet metal - image - 2
Add to favorites
Compare this product


Characteristics

Operation
electric
Type
mobile
Applications
for sheet metal
Other characteristics
with adjustable angle
Power

5,500 W
(7.48 hp)

Rotational speed

Max.: 900 rpm
(5,654.87 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Chamfer angle

Max.: 75 °

Min.: 0 °

Description

- Motor Power 230/400 VOLT. 3 PHASE 5,5 KW.(5500W) 50/60 HZ - Bevel Length max 74 mm max 2.91in - Bevel Angle 0° – 75° - Plate Thickness 8 – 70 mm 0.315 – 2.75in - Facing max 70 mm - Cutter Ø 80 mm – Z6 Ø 3.14in – Z6 - Cutter Speed 0 – 900 RPM - Feeding Speed 0 – 1,4 mt/min 0 – 4.59 ft/min - Dimensions and weight 1012x770x h1760 mm – KG. 380 39.8 x 30.3 x h69.29 – 836lbs - Digital Display YES
