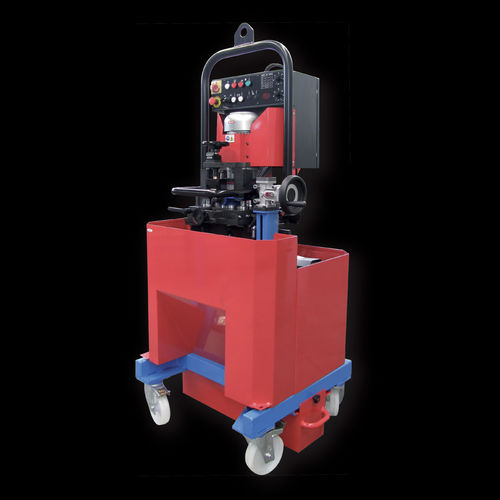

Beveling machine with automatic feeder Art. 910

electricmobilefor sheet metal

- Motor Power 230/400 VOLT. 3 PHASE 4KW.(4000W) 50/60 HZ - Bevel Length max 58 mm max 2.28in - Bevel Angle 0° – 15° ( 90°- 75° ) - Plate Thickness 8 – 100mm – (*) 8 – 200 mm 0.315 – 3.93in – (*) 0.315 – 7.87in - Clad Size DEPTH MAX 15mm – WIDTH MAX 53mm – MAX DEPTH 0.59IN – MAX WIDTH 2.08IN - Cutter Speed 0 – 900 RPM - Feeding Speed 0 – 1,4 mt/min 0 – 4.59 ft/min - Dimensions and weight 826x831x1993 mm – Kg. 390 32.5 x 32.7 x 78.5in – 858lbs - Digital Display YES
