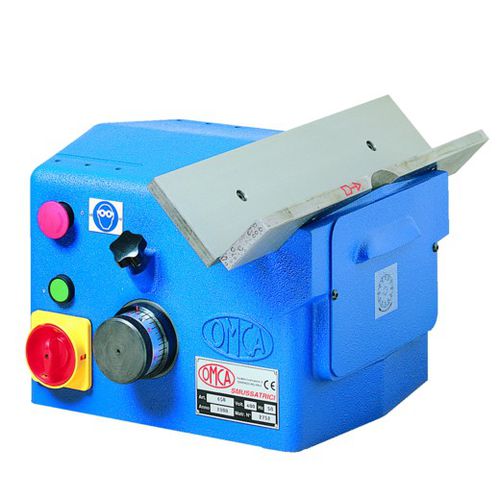

Bench-top beveling machine Art. 650 series
electricfor sheet metal

Bench-top beveling machine - Art. 650 series - OMCA - electric / for sheet metal

Bench-top beveling machine - Art. 650 series - OMCA - electric / for sheet metal - image - 2

Bench-top beveling machine - Art. 650 series - OMCA - electric / for sheet metal - image - 3

Add to favorites

Compare this product

Characteristics

Operation

electric

Applications

for sheet metal, bench-top

Power

950 W
(1.29 hp)

Rotational speed

2,900 rpm
(18,221.24 rad.min-1)

Chamfer angle

Max.: 45 °

Min.: 15 °

Description

ART. 650 A/L - Motor Power 230/400 VOLT. 3 FASI-PHASE 0,95 KW.(950W) 50/60 HZ - Bevel Length max 10 mm max 0.393in - Bevel Angle 45° - Cutter Ø 70 mm – Z12 Ø 2.75in – Z12 - Cutter Speed 2900 RPM – (*) 0 – 6000 RPM - Dimensions and weight 500x480x h320 mm – Kg. 52 19.68 x 18.9 x h12.6 – 114.4lbs - Applications A= Acciaio/Steel L=Leghe Leggere/Light Alloys - Bevel Radius R2, R3, R4 or R5 ART. 650 A/S – L/S - Motor Power 230/400 VOLT. 3 PHASE 0,95 KW.(950W) 50/60 HZ - Bevel Length max 12 mm max 0.47in - Bevel Angle 15° – 45° - Cutter Ø 70 mm – Z12 Ø 2.75in – Z12 - Cutter Speed 2900 RPM - Dimensions and weight 600x500x h320 mm – Kg. 60 23.62 x 19.68 x h12.59 – 132lbs - Applications A= Steel – L= Light Alloys - Bevel Radius R2, R3, R4 or R5
