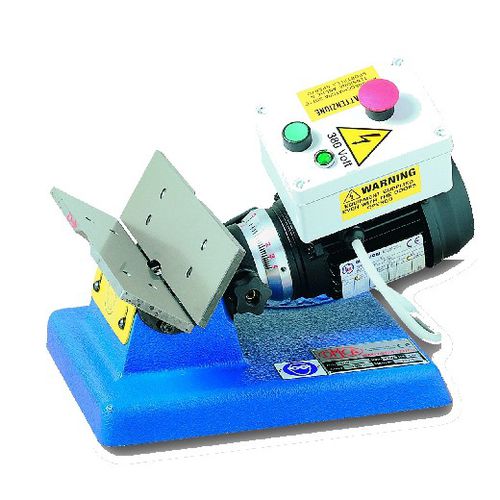

Bench-top beveling machine Art.400 series
electricfor sheet metalwith adjustable angle

Bench-top beveling machine - Art.400 series - OMCA - electric / for sheet metal / with adjustable angle

Bench-top beveling machine - Art.400 series - OMCA - electric / for sheet metal / with adjustable angle - image - 2

Add to favorites

Compare this product

Characteristics

Operation

electric

Applications

for sheet metal, bench-top

Other characteristics

with adjustable angle

Power

550 W
(0.75 hp)

Rotational speed

Max.: 6,000 rpm
(37,699.11 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Chamfer angle

Max.: 45 °

Min.: 30 °

Description

ART. 400/450 – 400 CC - Motor Power 230/400 VOLT. 3 PHASE – SINGLE PHASE 0,55 KW.(550W) 50/60 HZ - Cutter Speed 2900 RPM - Bevel Lenght max 6 mm max 0.23in - Bevel Angle 30° – 45° - Cutter 400 Ø 60 mm Z9 – 450 Ø 70 mm Z12 15.75 Ø 2.36in – Z9 – 17.71 Ø 2.75in – Z12 - Dimensions and Weight 440x320x h300 mm – Kg. 22 17.32 x 12.6 x h11.81in – 48.4lbs - Radius R2, R3, R4 or R5 - Motor Power 230 SINGLE PHASE 0,55 KW.(550W) 50/60 HZ - Cutter Speed 0 – 6000 RPM - Bevel Length max 6 mm max 0.23in - Bevel Angle 30° – 45° - Cutter 400 Ø 60 mm Z9 – 450 Ø 70 mm Z12 15.75 Ø 2.36in – Z9 – 17.71 Ø 2.75in – Z12 - Dimensions and weight 440x320x h300 mm – Kg. 22 17.32 x 12.6 x h11.81in – 48.4lbs - Bevel Radius R2, R3, R4 or R5
