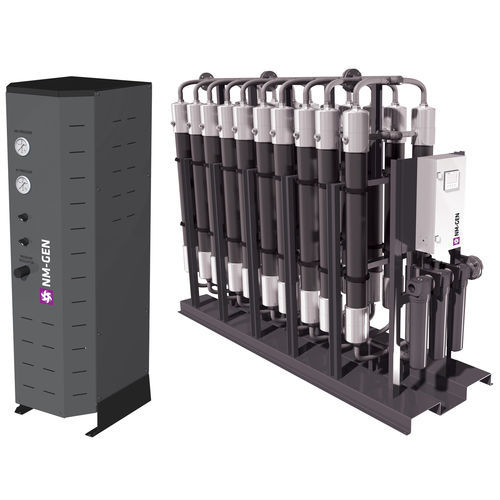

Laser cutting nitrogen generator NM-GEN

pressure swing adsorptionmembrane

The membrane nitrogen generators NM-GEN extract the available nitrogen from the compressed air. Membrane nitrogen generators use hollow fibre membrane technology to separate nitrogen from other components in compressed air. The membrane uses the principle of selective permeation to produce purity nitrogen. Each gas has a characteristic permeation rate, which is a function of its ability to diffuse through a membrane. Oxygen is a fast gas and is selectively diffused through the membrane wall, while nitrogen is allowed to travel along the inside of the fibre, thus creating a nitrogen-rich product stream. The oxygen-enriched gas, or permeate, is vented from the membrane separator at atmospheric pressure.Most of the slow gases and a very small amount of the fast gases continue to travel through the fibre until they reach the end of the membrane separator, where the product nitrogen gas is piped to the application. Characteristics • nitrogen pressure: 5 - 24 bar • operating temperature range (feed air): 35 to 55 °C • dew point (at ambient pressure): < -50 °C • N2 capacity: 0,8 to 780 Nm3/h • N2 purity: up to 99,5 % STANDARD EQUIPMENT • Set of external feed air filters • Electric heater • Supporting frame or cabinet • Pressure regulator • Internal piping • Nitrogen and air flow regulation OPTIONAL EQUIPMENT • Nitrogen sterile filters • Nitrogen booster • Nitrogen cylinder filling system Applications • Blanketing of Chemicals and Pharmaceuticals • Inerting of Flammable Liquids • Laser Cutting • Re-flow and Wave Soldering of PCBs • UV-Curing of Coatings • Food processing
