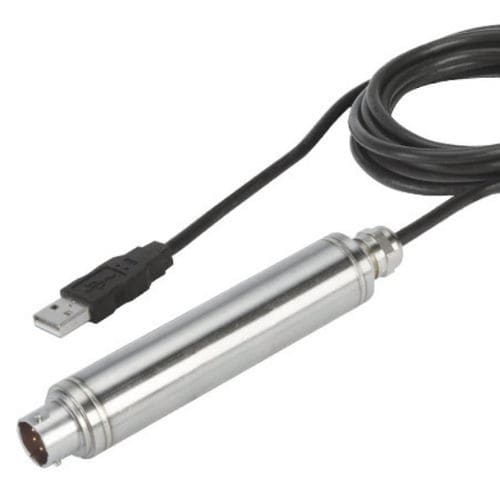

USB pressure transducer IN-USBH

400 VDCstainless steel

• High Speed USB Transmitter for mV (Bridge Output) Transducers • Up to 1000 Readings/Second • Free Downloadable Software • Ready-Made Cable Assemblies Now Available! • Very Low Thermal and Linearity Errors • Excellent Long Term Stability • Standard USB Connector Cable • Factory System Setup and Calibration with Transducer Available* The IN-USBH In-Line Signal Conditioner adds digital USB output to mV/V pressure or load transducers. Free downloadable OMEGA PC software takes the data from the transducer directly to the digital domain, turning your laptop or Windows® tablet (with USB connection) into a virtual meter, chart recorder, and data logger. Export logged data to spreadsheet format for later viewing/analysis. The PC-connected IN-USBH provides regulated excitation to the transducer so that no external power supply is used. Sampling rates are adjustable up to 1000 Hz for dynamic or slow moving applications. Mounting bracket is included. Transducer interconnecting cable can be purchased separately. The IN-USBH is compatible with mV pressure and load sensors that meet the stated transducer requirements. Have your Omega or other brand mV/V transducer calibrated with your IN-USBH signal conditioner at Omega’s state-of-the-art factory! Two options are available: Factory System Setup provides 2-point calibration at 0 and 100% Full Scale values. Factory System Calibration provides 5-point NIST Certified 0-50-100-50-0% of Full Scale value calibration points.
