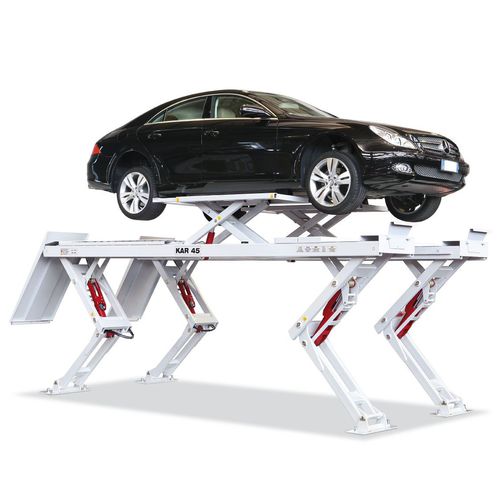

Scissors post lift Kar 45

4 tonelectro-hydraulicfor car

Vertical electro-hydraulic lift for alignment purposes, with a capacity of 4.500 kg (10.000 lbs) LT capacity 4.000 kg (8.800 Ibs) The lift is already according updating of August 2010 of the european norm EN 1493 Versions: N - standard platform (not equipped) CA - version with front recess on platform for turn plates and/or play detectors CT - version for total convergence with front recess on platform and rear plates LT - version with auxiliary free-wheeling lifttable All lifts are available above ground and flush mount, one way and drive through version Description: Main Features: Lift Capacity: 4.500 kg Platform lenght: 5. 000 mm standard Collapsed Height = 210 mm ( N version ) –260 mm ( CT/LT version) Available in the flush mount and above ground version LT Capacity: 4.000 kg LT Platforms lenght: from 1.900 to 2.100 mm (capacity reduced to 3.500 Kg) Safeties Mechanical Safety Locks in each cylinder Burst valve in each cylinder High pressure Relief valve in all cylinders and in control unit Photocell for control of platforms parallelism Limit switch with acoustic warning for the complete lowering Low voltage controls Dead man controls Accessories: Automatic blocking system of the rear slip plates Automatic platforms realignment
