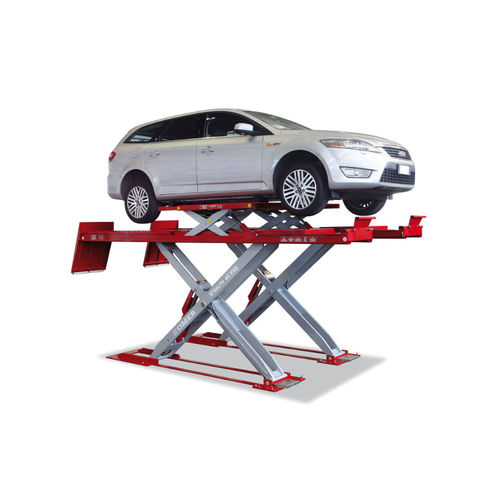

Scissors post lift Stealth 40 VXB

4 tonelectro-hydraulicfor car

A new concept electro-hydraulic scissor lift, with extra-low profile and without encumbrances on the floor. Easy and cheap to be transported it offers the maximum freedom of movement under the runway thanks to a structure made of two completely independent runways. The above ground and the flush-mounted version are both space-saving: with a height of just 180 mm from floor, the lift requires very little civil works and facilitate also the acces of cars with low chassis. A button for the automatic realignment of the hydraulic circuit allows the constant and perfect leveling of the platforms. An exclusive lifting system grants the maximum liability of the structure and appreciably reduces the installation time: the system in fact requires less piping and is mechanically easier. The lift is already according the updating of August 2010 of the european norm EN 1493. MAIN FEATURES • Capacity of the lift: 4.000 kg • LT Capacity: 4.000 kg • Platform’s length: 4.800 mm standard (upon requirement also 3.900 mm and 4.400 mm) • Height with all collapsed lift: 180 mm • Available in flush-mounted or above ground version • Maximum operating stability under all loading conditions thanks to a set of master-slave cylinders with mechanical synchronization of master cylinders (not electronic) • Maximum liability also with unbalanced loads: thanks to the maximum pressure valves the slave circuit is constantly protected against extra-pressure. • All cylinders inside are chromed, to guarantee a long last of seals and of the cylinders itselves.
