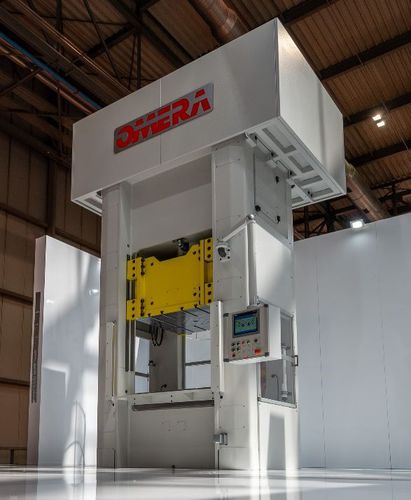

Hydraulic press OPI. M-200 formingH-frametriple-action
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Structure
- H-frame
- Other characteristics
- triple-action
- Force
22 tf, 80 tf, 200 tf
- Opening
1,100 mm
(43 in)- Stroke
350 mm, 800 mm
(13.78 in, 31.496 in)- Table width
1,250 mm
(49 in)- Table length
1,450 mm
(57 in)- Working speed
55 mm/s, 129 mm/s
- Return speed
495 mm/s
- Approaching speed
590 mm/s
- Weight
27,000 kg
(59,525 lb)- Overall length
2,560 mm
(101 in)- Overall width
2,900 mm
(114 in)- Overall height
5,700 mm
(224 in)
Description
Triple-acting H-frame monolithic press with 200 tons of adjustable working capacity, independent lower cushion with power of 80 tons and 22 tons passive third effect. Characterized by a very rigid structure and with a table size of 1450x1250 mm. Double-pump hydraulic system for high production rates.
