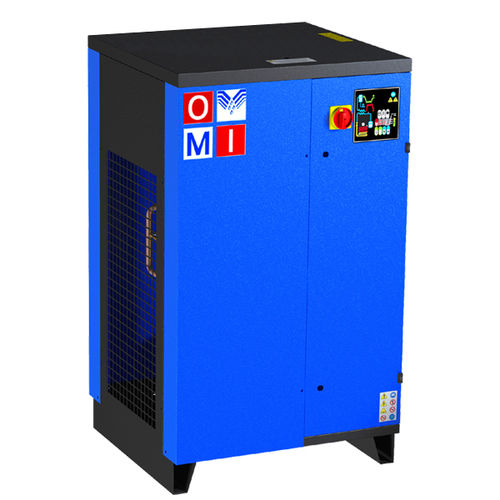

Refrigerated compressed air dryer ED series low-pressurewater-cooled
Add to favorites
Compare this product
Characteristics
- Technology
- refrigerated
- Other characteristics
- low-pressure, water-cooled
- Capacity
Max.: 6,800 m³/h
(240,139.73 ft³/h)Min.: 360 m³/h
(12,713.28 ft³/h)- Working pressure
13 bar, 14 bar, 16 bar
(188.55 psi, 203.05 psi, 232.06 psi)- Motor power
Max.: 9.84 kW
(13.38 hp)Min.: 0.82 kW
(1.11 hp)- Operating temperature
35 °C, 60 °C
(95 °F, 140 °F)- Ambient temperature
25 °C
(77 °F)- Dew point
3 °C
(37.4 °F)
Description
ED 360-6800 are available upon request with water cooled condenser. Shell and tube water condensers will guarantee extremely low pressure drop on water side circuits and require little or no maintenance. Essential for those applications where cool air flow is not achievable.
