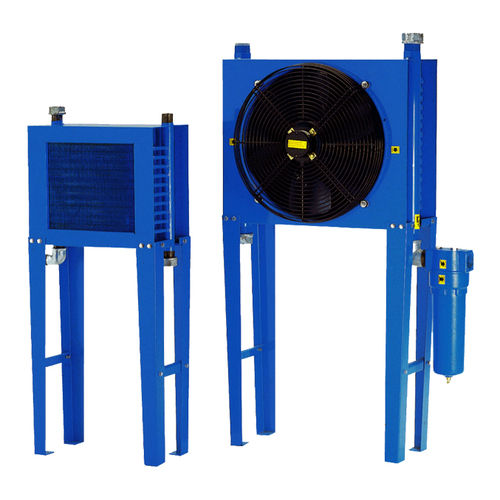

Air aftercooler RA seriesindustrialelectric
Add to favorites
Compare this product
Characteristics
- Material
- air
- Applications
- industrial
- Other characteristics
- electric
- Power
Min.: 20 W
(68.24 BTU/h)Max.: 1,300 W
(4,435.78 BTU/h)- Maximum temperature
25 °C, 45 °C
(77 °F, 113 °F)- Flow rate
Min.: 60 m³/h
(2,118.88 ft³/h)Max.: 4,500 m³/h
(158,916 ft³/h)- Pressure
12 bar, 16 bar
(174.045 psi, 232.06 psi)
Description
60Hz version available on all models
RA10-160 - NPT connections
RA300-750 - ANSI connections
All models are available also without separator, motro or frame
The widely sized heat exchanger and powerful electrical forms permit to lower compressed air temperatures from 120°C up to an outlet temperature of 9°C higher than the ambient temperature.
Pressure drops are reduced to the minimum and the condensate formed is discharged through the condenser separator mounted on outlet of the heat exchanger.
