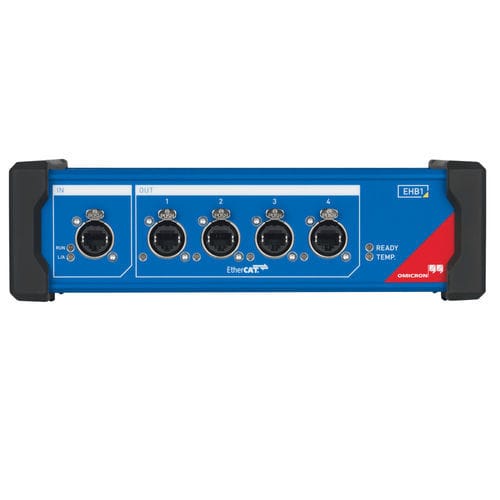

Serial hub EHB1

EtherCAT® hub for CIBANO 500 EHB1 – for tests of large circuit breakers with several CB MC2 and a CB TN3 module The EHB1 allows the connection of more than four EtherCAT®-compliant devices with CIBANO 500. Depending on the necessary number of EtherCAT® connections any number of hubs can be connected in series. The EHB1 consists of one input and four outputs. What does it do? It enables the connection of up to 4 additional EtherCAT®-compliant devices with CIBANO 500. When is it needed? When testing large circuit breakers where additional EtherCAT®-sockets are needed. Key features - CIBANO 500 accessory especially designed for tests of large high-voltage circuit breakers with many interrupter units - One EtherCAT® input and four outputs for connecting CB MC2 or CB TN3 modules to the EtherCAT® interface of CIBANO 500 - Allows all important tests of circuit breakers with more than 8 interrupter units without rewiring - Tests become more comfortable and safer
