Partial discharge measuring device PDL 650

acoustictransformer

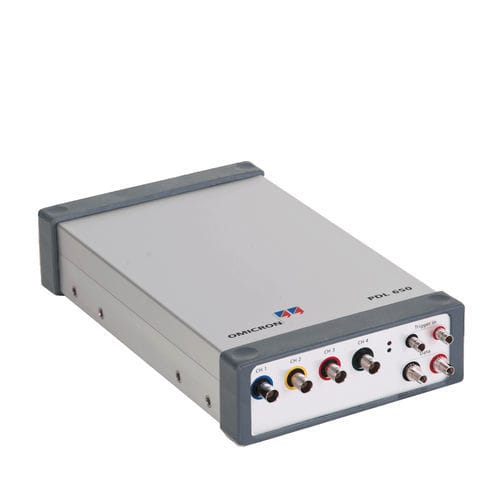

Acoustic partial discharge localization in power transformers Locates insulation defects The PDL 650 is an acoustic partial discharge (PD) localization system for pinpointing the location of insulation defects in power transformers. Even at an early stage, insulation defects produce measurable partial discharges, which emit electrical and acoustic signals at the same time. The PDL 650 measures the acoustic signals with multiple sensors installed across the surface of the transformer. Innovative defect localization The PDL 650 software uses the time difference of incoming signals from all acoustic sensors to determine the location of an insulation defect in the transformer. The coordinates of the defect location are shown in a 3D model of the transformer. This information allows users to quickly act and take necessary maintenance actions to prevent failure. Key features - Efficient because repairs and spare parts are predictable when failure location is known - Easy creation of reports and records - Safe due to galvanic separation of operator from high-voltage - Convenient and handy through light weight, small size and battery operation
