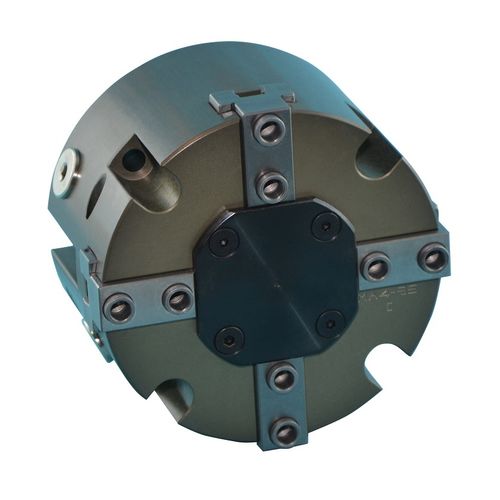

Pneumatic gripper PFPconcentric4-jawself-centering
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- concentric
- Number of jaws
- 4-jaw
- Options
- self-centering, internal, external
- Grip strength
770 N, 1,330 N, 2,400 N, 4,130 N, 7,500 N
- Stroke
21 mm, 50 mm, 111 mm, 217 mm, 477 mm
(0.827 in, 1.969 in, 4.37 in, 8.543 in, 18.78 in)
Description
- Range of operating pressure: 2 - 8 bar
- Repeatability accuracy: PFP-75..110 0.02 mm; PFP-145..185 0.05 mm over 100 cycles;
- Operating temperature: from -10°C to 90°C; version up to 130°C upon request
- Operating principle: wedge-hook kinematics
- Housing material: high tensile hardcoated aluminium alloy, hard-anodized
- Material of functional parts: treated ground steel
- Actuation: pneumatic, with filtered compressed air (10 μm): dry, lubricated or non-lubricated (DIN ISO 8573-1: 644)
- Maintenance: no maintenance required for the first 1.5 million cycles
- Suitable for internal/external gripping
- Layout finger connection page 18
- Rating IP 40
- Air connections: sides and base
- Warranty 24 months
