Pillar jib crane CTZ
270°mobilewith hoist

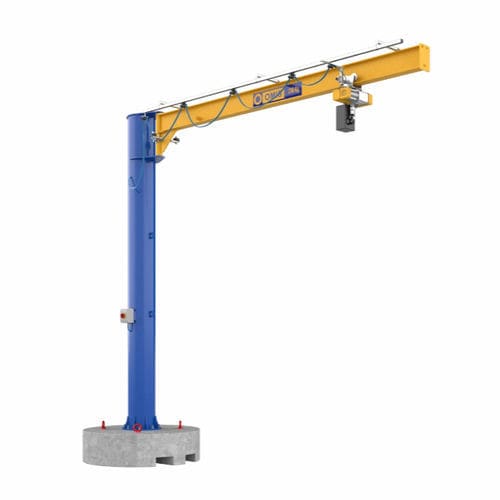

Pillar jib crane - CTZ - OMIS - 270° / mobile / with hoist
Pillar jib crane - CTZ - OMIS - 270° / mobile / with hoist
Add to favorites
Compare this product

Characteristics

Type
pillar
Rotating degree
270°
Other characteristics
mobile, with hoist
Load

Max.: 500 kg
(1,102 lb)

Min.: 125 kg
(276 lb)

Span

Max.: 6 m
(19'08" )

Min.: 1 m
(3'03" )

Lift height

Max.: 6 m
(19'08" )

Min.: 1 m
(3'03" )

Height under upper

Max.: 6 m
(19'08" )

Min.: 1 m
(3'03" )

Overall height

Max.: 6 m
(19'08" )

Min.: 1 m
(3'03" )

Boom length

Max.: 6 m
(19'08" )

Min.: 1 m
(3'03" )

Lifting speed

18 m/min

Description

The pillar jib crane with cantilever girder boom and movable plinth is ideal for handling anywhere in the work area using a forklift or overhead crane. It is a special solution that is not constrained by a permanent anchorage to the ground. A second specific advantage of this jib crane is the possibility of ensuring maximum use of the available height, with consequent increase of the available hook stroke. All these features make it a highly versatile tool, as well as being easy to handle and highly economical, both in installation and in the day-to-day operation of the work area served The mobile jib crane, with self-supporting cantilever girder boom and without tie rods, is used for handling light loads in a variety of industrial applications, from small workshops to large assembly lines, food production plants or wine cellars.
