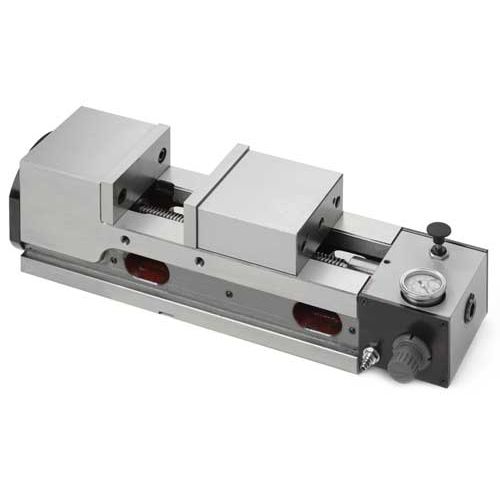

Machine tool vise SPEEDY VISE

pneumaticcompactquick clamp

Robust contructlon of one piece casting of fixed Jaw and vise bed. Rigid and nigh tensile casting of ductile iron FCD60JIS (equal to CCC60) with 60 kg/mm2 or so.ooo psi tensile strength. Most suitable for mass |productlon and to be used on machine centres, milling machines, drilling machines and special purpose machines. Most compact pneumatic mechanism design. No oil, just joint the air supply will do. Most compact In total length of vise with max clamping capacity. safety locking mechanism for unexpected termination of air supply. After pneumatic clamping, the workplece will be clamped firmly even without the air supply. Easy and simple ON-OFF switch control for pneumatic operation. The optional electric control for automatic and FMS system is available. safety protection max. pneumatic clamping stroke is 4 mm. (Adjust the stroke at 2 mm for a better power capacity) Rapid ON-OFF only 1,5 sec. Multiply pneumatic Quick Vise set up available with only one source of air supply (optional). Free adjusting of max. pneumatic clamping pressure (see graphs) using the air regulator placed nearby the pressure control gauge vise bed flame hardened to HRC 45°. Down trust "semi-spherical segment" mechanism eliminates jaw lifting and workplece.
