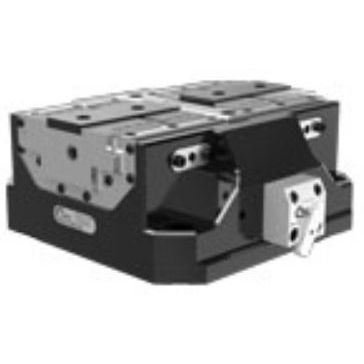

Vertical clamping machine STV Series

hydraulic

Spring and air operated Twin Vise Protected and springs clamping STV-2N: Normal stroke Pneumatic open/close control STV-2L: Long stroke (stroke control) master jaws valve 2 jaws • Compact design • Linear pressure adjustment • Highest repeatability • Highest rigidity Standard equipment Self-centering vise without top jaws All bolts and centering bushings included • Spring to clamp, pneumatic open • Increase of the clamping force via Turbo function • Housing and functional parts hardened for high precision and long life • Ready for air purge • Master jaws with both Tongue & Groove and fine serration 1,5mmx60° • OD clamping only • Safety valve SAB-1 to maintain air pressure during pallet transportation/ storage and machining without feed (optional see page 30) • Pneumatic open/close control (stroke control) master jaws valve (optional see page 30) • Lubrication with SMW-Autoblok K67 grease • Stroke control via proximity switches (optional see page 29) • Air sensing
