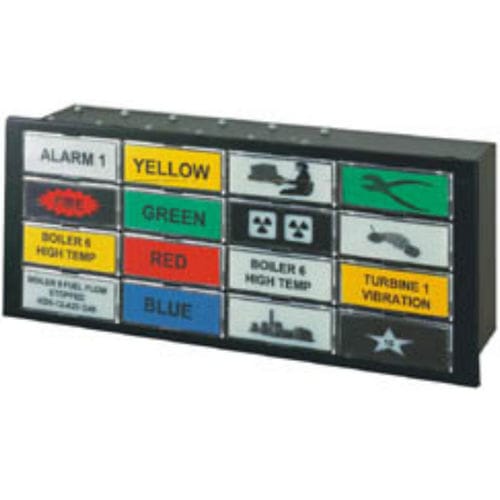

Alarm annunciator OMNI16C

-24Vdc Powered (48Vdc or 85-264Vac/dc options) -Small, Compact panel-mounted and easy to use -16 Potential Free Inputs -Normally Open/Closed Selectable via DIP switch -27 Standard Alarm Sequences -Certified to IEC61508 SIL1 Safety Standard -UK Nuclear Industry SIL1 EMPHASIS Assessed 16 Potential Free Contact Input annunciator Incandescent Lamp display. Repeat Outputs optional, Relays(C1425) or Open collector(C1426). Supplied with PC templates to print legends for alarm windows. Serial Port RS232/485 optional Note: This lamp option is no longer available. Other options are Backlit (Model C1480B) and Sidebar (Model C1481B). The Omni16C annunciator replaces the Omni16A and B series annunciators with one product offering the option of incandescent lamps, backlit LED or Sidebar LED indicator windows. Omni16C is a panel mounted annunciator with optional integral Test, Silence, Acknowledge, Reset Pushbuttons (sacrificing one alarm window) or uses externally wired pushbuttons. The 16 inputs accept potential free inputs and are individually “DIP” switch configured for N.O. or N.C. operation. Inputs are wired to terminals at the rear of the annunciator. Optional Inputs boards for com negative (PLC compatible) or fully isolated 19-60Vdc or 90-150 Vac/dc are also available. The alarm sequence for the 16 inputs is also configured by “DIP” switch with a choice of 27 standard sequences. Four output relays can be configured as group alarm, horn output and watchdog with a change over contact at the terminals.
