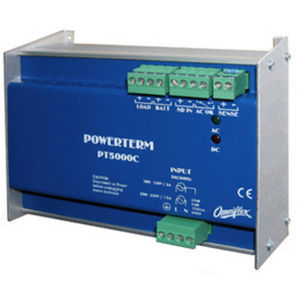

DIN rail-mounted battery charger PTC

lead-acidautomatic

-DIN Rail mounting -12Vdc or 24Vdc output selectable. -Operates from 85-264Vac universal ac supply -660 mA @12V and 330 mA @24V load plus charge current -Under-voltage cutout to protect battery from deep discharge. -Charging characterised for sealed lead-acid cells. -Independent battery and load terminals for ease of installation. -Over-current protection to protect wiring against faults. -AC detect output for mains monitoring. Powerterm PTC 85-264Vac. 24/12Vdc 0.66A Charger for Battery Backed instrument power supply. DIN Rail or surface mount QTY Discount 10-24 less 5% , 25 upward less 10%. The PTC is a very compact combined Power Supply and Battery Charger system with integrated standby battery management ideally suited for RTU supply applications with Teleterm M Series Products. Just connect mains supply 85 to 264Vac, standby battery and load for an industrial grade standby power supply system for Remote Terminal Units. This DIN rail mounted product is ideal for providing dc power to instrument systems where battery backup is necessary to ensure continuous system operation during power failure. Applications include RTUs, dataloggers, remote field instruments, alarm systems and access controllers. Managing battery-backed systems for optimum backup time and battery life can be tricky and expensive. This product incorporates many features that make installing such systems simple and foolproof. Batteries are capable of delivering enormous currents under system fault conditions that can damage wiring and equipment. The PTC incorporates an autoresettable load cutout, which disconnects the load under over-current fault condition.
