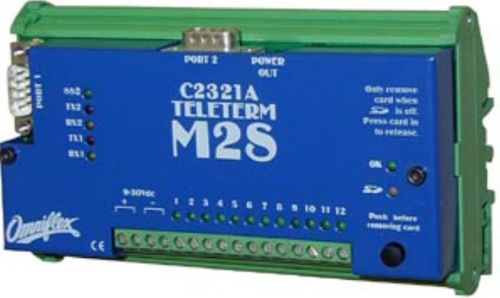

GSM RTU C2321A

GPRSRS-232RS-485

-12 Inputs and/or Outputs (Analog or Digital) -9 - 30V dc powered. -On-board temperature sensor and voltage monitor -Integral Real-Time Clock with Battery Backup -Programmable for a wide range of applications -Wide operating temperature range -Compact size for tight spaces -Convenient DIN Rail mounting -Requires Serial Cable for Programming Programmable RTU with 12 Universal I/O DI/DO/AI/AO non isolated, Modbus Master or Slave or Conet/s Protocol. Powered from 9-30Vdc. Battery backed Real Time Clock and Internal Temperature sensor and power supply voltage monitor. OVERVIEW The TELETERM M2 is a state-of-the-art RTU range designed to enable a wide range of devices and machines with state-of-the-art connectivity. Everyone is aware of the enormous advances to efficiency and productivity that the latest wireless telecommunications technology and the Internet have brought to our society. With an estimated three times as many machines in the world as people, can you imagine the benefits to you of being able to harness this technology to manage your hard assets as well – regardless of where they are located!  “M2M” is the latest buzzword that encapsulates the technology of “machine-to-machine”, “machine-tomobile”, and “machine-to-man” communications required to make this a reality. “M2M” is an enabling technology in remote sensing and asset management. Using the capability that “M2M” provides, you need never feel out of touch or out of control again.  The Teleterm M2 Series provides the ideal cost effective interface to your assets or processes to provide the control and information that you need to optimise your operations.
