Modbus RTU RTU C2363A-0

Modbus TCPEthernetRS-232

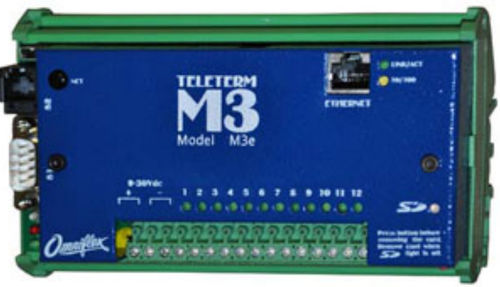

-12 Configurable Inputs and Outputs -10/100 Ethernet -SD Card logging -9 - 30V dc powered Teleterm ISaGRAF Prog 10/100 Ethernet RTU with 12 Universal I/O DI/DO/AI/AO, RS232/485 Modbus Master or Slave or Conet/s or Custom Protocol. Powered from 9-30Vdc. Battery backed Real Time Clock, ISaGRAF Ready; order CC030A-URTT to activate The TELETERM M3e is a state-of-the-art RTU designed to expand the possibilities of remote monitoring and control by providing a cost effective platform with a wide range of features. The TELETERM M3e comes with 12 universal I/O that can be configured for anlogue or digital input or output according to your needs. The on board Ethernet, RS232/485 port can be used to acquire data from other third party devices using either the Modbus protocol, or by downloading a custom software protocol plug-in. This feature allows a wide variety of third party devices to be supported. The low power consumption of the Teleterm M3 makes it suitable for use in solar-powered and battery-powered applications. Teleterm M3e is programmed in ISaGraf (selectable option), an industry standard programming environment for all five IEC61131-3 programming languages, providing the ability to do local control, and custom logic. The Teleterm M3e also incorporates an micro SD memory card slot to support local data logging. The Teleterm M3e is also equipped with 10/100 Ethernet port. Typical applications for the M3e and M3e include: Energy Management and Remote Meter Reading. Environmental Monitoring Remote Site Monitoring Utilities monitoring Pump Stop and Start Control Reservoir Pump Integrated Control Message Board Ethernet Connection from Plant
