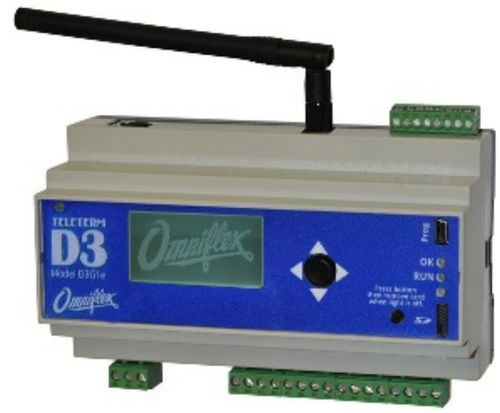

GSM RTU C2395A-1-11

Modbus RTUModbus TCPEthernet

-8 Configurable Inputs and Outputs -Up to 32 Modbus Meters or other devices -SD card Stores up to 1 year’s data if off line -Integral Real Time Clock with Battery Backup -85-264Vac powered with Integral battery backup -Standard 9 module DIN 43880 size -Ethernet port -GSM Communications port -Programmable in IEC61131-3 using ISaGRAF (optional) Teleterm D3G1e Programmable RTU with GSM Port, Serial Modbus RS485, Ethernet, SD Logging, Micro LAN, 85-264Vac Power with Integral battery backup, ISaGRAF Ready; order CC030A-URTT to activate The Teleterm D3 Series is a State of the art RTU range designed to expand the possibilities of remote monitoring and control by providing a cost effective platorm with a wide range of features and is compatible with the Data2Desktop service. Each unit comes with 8 universal I/O that can be configured for analogue or digital input or output according the application. The On board Ethernet and GSM mobile phone network can be used to acquire data from third party devices using either the Modbus Protocol or a custom "plug in" protocol. The Teleterm D3 series can be programmed in ISaGraf (option), in any of the 5 Industry standard IEC61131-3 languages providing the ability to execute local control and custom logic. An SD memory Card is also incorporated for local data logging applications. Communications and Programming options differentiate one unit from another. The C2395A-1-11 has the following features: 8 I/O universal 1 RS232/RS485 Port 1 Ethernet Port 1 GSM port IEC61131-3 programmable using ISaGRAF (optional)
