Modbus RTU RTU C2360B-21-0

Modbus TCPRS-232RS-485

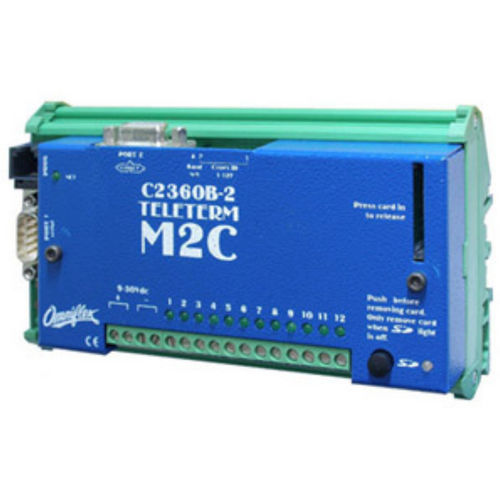

-Low Power Operation -9 to 30Vdc Powered -SD Memory Card Slot for Local Logging -On-board temperature sensor and supply voltage monitor -Integral Real Time Clock with Battery Backup -Programmable for a wide range of applications -Wide Operating Temperature range -Compact Size for tight spaces -Convenient DIN rail mounting -Modbus RS232/RS485 or Custom Protocol Port -CONET Port Programmable CONET RTU with 12 Universal I/O DI/DO/AI/AO, RS232/485 Modbus Master or Slave or Conet/s or Custom Protocol. Powered from 9-30Vdc. Battery backed Real Time Clock The Teleterm M2 Series is a State of the art RTU range designed to expand the possibilities of remote monitoring and control by providing a cost effective platorm with a wide range of features. Each unit comes with 12 universal I/O that can be configured for analogue or digital input or output according the application: I/O 1 to 10 can be Digital Input, Digital Output, Analogue Input. I/O 11 and 12 can be Digital Input, Analogue Input or Analogue Output. The On board RS232/485 port can be used to acquire data from third party devices using either the Modbus Protocol or a custom "plug in" protocol. An SD memory Card is also incorporated for local data logging applications. Communications and Programming options differentiate one unit from another. The C2360B-21-0 has the following features: 12I/O universal RS232/RS485 Port CONET Port
