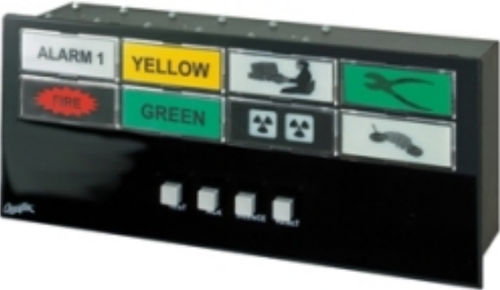

Alarm annunciator Omni8P

-24Vdc Powered (48Vdc or 85-264Vac/dc option) -Compact, panel mounted and easy to use -8 Potential Free Contact Inputs -Normally Open/Closed Selectable via DIP switch -27 Standard Sequences -Backlit LED Display -Integral pushbuttons and Audible Warning - Expandable to 248 points -Optional internal repeat relay outputs - Fully “DIP” Switch Configurable -Certified to IEC61508 SIL1 Safety Standard -UK Nuclear Industry SIL1 EMPHASIS Assessed 8 Potential Free Contact Input annunciator Backlit display.4x2 Windows(24V +Comm inputs) Integral Pushbuttons, Horn. Repeat Outputs opt-Relays(C1425) or Open collector(C1426). Serial Port RS232/485 optional (C1423). No LED Boards fitted. The Omni8P annunciators replace the Omni8B annunciator with a range of products offering the option of incandescent lamps, backlit LED or Sidebar LED indicator windows. The Omni8P is a panel mounted 8 point alarm annunciator with integrated Test, Silence, Acknowledge and Reset Pushbuttons, and internal audible warning.  Combine this alarm annunciator with Omni16C 16 point units to create alarm systems from 24 up to 248 points.  The 8 potential free contact inputs and are individually “DIP” switch configurable for Normally Open or Normally Closed operation. Optional Inputs boards for common negative (PLCs compatible) or fully isolated 19-60Vdc or 90-150 Vac/dc are also available. The alarm sequence for the 8 alarm points is configured by DIP switch with a choice of 27 standard sequences. Four relay contact outputs provide group alarm, horn and watchdog outputs. The group alarm can be set to one of four functions, Follows input, follows alarm, Multiple reflash or Ring-back horn.
