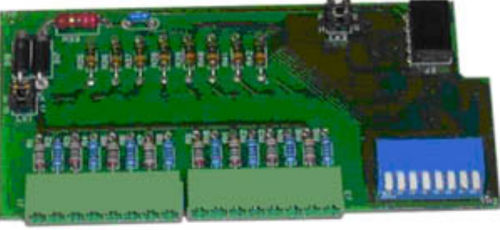

8 inputs input card Omni8/16C

8-channelplug-inintegrated

-8 Inputs individually isolated to 500Vrms -Field to Logic Isolation of 1500Vrms -Plug-in Terminals for easy maintenance -Wide 90-150Vac/dc input operating range Omni8/16C 8 Channel Isolated Input Board. Inputs from 90 to 150V ac/dc. This is a spare part. Order with annunciator, add option -3 if fitted to new Omni-8C/16C unit. This Omni8/16C input board is designed for use in applications where the input source voltage is supplied external to the Omni8/16C. This module provides 1500Vac input to logic isolation and 500Vac inter channel isolation. This input module should be used in applications where the Omni8/16C inputs need to be connected directly to electrical circuits such as ac powered contactors or relays, relay logic or interlocks etc. powered by 110Vac/dc. This allows the annunciator to be integrated into applications without the use of interposing relays. The input sense selection (state of the input on/off for an alarm condition) is set via “DIP” switch and inputs are connected via plug-in terminals that allow easy disconnection of the module without disturbing the wiring. Individually isolated inputs allow each input to be used in a different electrical circuit such as found in motor control circuits. These boards should only be fitted by Omniflex trained service personnel. To order this input board separately as a spare part, use Order Code C1170. To order this input board as a factory-fitted option to a new Omni16C, add -3 to the Order Code.
