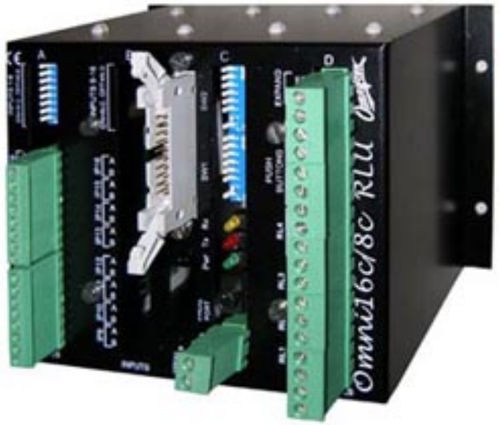

Module alarm annunciator Omni8C RLU

remote

-Provides reliable alarm functions for critical alarms -Small, compact, surface mounted and easy to use -8 Potential Free Contact Inputs -27 Standard Alarm Sequences -Fully “DIP” Switch Configurable -24Vdc Powered -Normally Open/Closed Selectable via “DIP” Switch -Four versatile Group Alarm output contacts -Display connected via ribbon cable -Certified to IEC61508 SIL1 Safety Standard -UK Nuclear Industry SIL1 EMPHASIS Assessed Omni8C - Remote Logic Unit, 8 Potential Free Contact Input annunciator no display. Display connected via ribbon cable. Overview The Omni8C RLU is a full function alarm annunciator logic module for 8 alarm points. Interconnect up to 16 modules together to produce an alarm annunciator up to 128 points. Connect to remote alarm displays such as the Omniflex Model C1670 or C1496 series Displays for a complete window alarm annunciator system, or wire to individual mimic lights to provide full critical alarm functionality to your mimic display.  Inputs  The 8 inputs accept potential free inputs and are individually “DIP” switch configured for N.O. or N.C. operation.  Alarm Sequences  The alarm sequence for the 8 inputs can be configured by DIP switch with a choice of 27 standard sequences. More individualised or advanced settings are done through the programming port accessible on the unit using the free Omniset Configuration Utility.  Control Pushbuttons  Test, Silence, Acknowledge and Reset Pushbutton input terminals are provided for a wide variety of control options.  Group Alarm Functions  The four common output relays can be configured as group alarm, horn output and watchdog.
