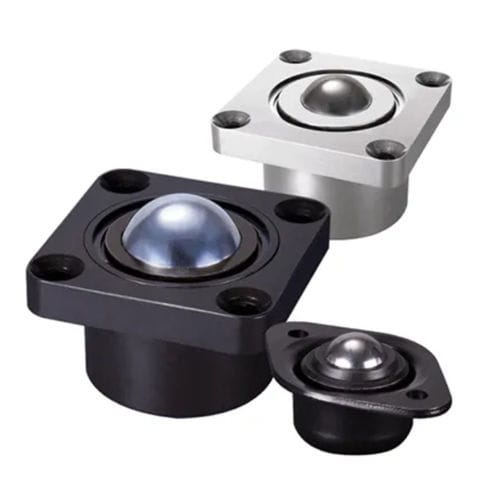

Heavy load ball transfer unit 93 series

stainless steelpolymercylindrical base

• The 93 series flange socket ball transfer has a load capacity from 46kg to 8000Kg each – any angle of operation • Convenient circular, elliptical & rectangular, 2 & 4 hole integral flange socket fitting (34.9 – 145mm square flange) • Units with ball Ø> 12.7mm incorporate replaceable seals • Service kits available for extended service life • Load ratings remain unchanged with ‘Optional material upgrades’ (Stainless steel, A, Z) – see below. Omnitrack 93 series heavy duty ball units incorporate integral bottom flange, ideal when base or surface mount fitting is required. 9300 incorporates 2 hole circular flange & 9310 features elliptical 2 hole fixing. All other models incorporate square flanges. Alternative fixing centers or sizes are available upon request. Lowest coefficient of friction & smoothest performance available. Material upgrade options are shown below – order by adding the suffix to the part number required, for example, 9350 ‘SS’ for all stainless steel parts.
