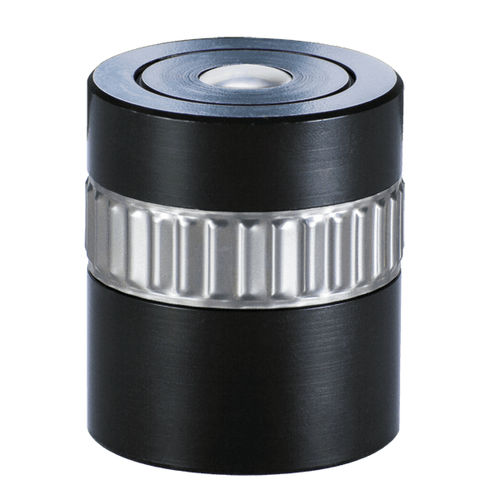

Spring ball transfer unit MN seriesstainless steelzinc-platedcylindrical base
Add to favorites
Compare this product
Characteristics
- Material
- stainless steel, zinc-plated
- Type
- cylindrical base, spring
- Capacity
- for medium loads
- Carrying capacity
40 kg, 60 kg, 100 kg, 335 kg
(88.2 lb, 132.3 lb, 220.5 lb, 738.5 lb)
Description
Medium Duty ball units are machined from solid steel & case hardened for wear resistance. Reinforced machined steel top cap protect against impact from misalignment of the conveyed item. Lubricated for life & zinc plated for resistance to corrosion. Standard materials; Body & cap AISI 1015, Balls AISI 52100. Stainless steel upgrade ‘A’ & ‘SS’ feature AISI420 balls Shock Resistance & body. Main ball sizes ≥19mm incorporate a felt seal to restrict contamination.
This series features a single drain hole.
• Maximum capacity at any angles of orientation.
• Heavy duty precision machined construction.
• “Endless track” design – smoothest precision.
• Service kits & factory spares since 1954.
