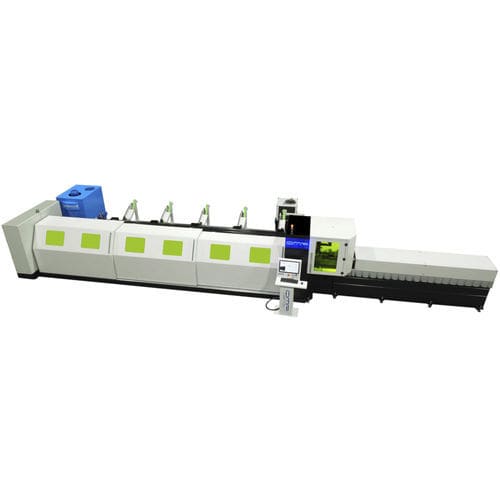

Fiber laser cutting machine TF120

2D laserfor aluminumfor stainless steel

The processing of the tubes with the laser machine is very convenient and reliable: the laser cutting allows to work the tube with extreme precision and speed, eliminating a whole series of processes that otherwise would need more ‘steps (just think of cutting, drilling, machining of shaped geometries). The advantages are also very different, just think of the care and cleaning of the surfaces of the material, which does not have to go through several machines, thus remaining intact and without scratches and smears despite the production times are significantly reduced. In addition, our laser can work different types of material without having to tidy up or change equipment in the machine. • Possibility of combining different types of automatic loaders capable of handling both closed and open profiles • Spindle with continuous 360 ° rotation, double griffe opening at both 45 ° and 0 °. Gas spring retention system with the possibility to decide the pressure on the pipe. • Hydraulic closing of the spindles controlled by proportional valve • Mobile spindle speed up to 120m / min • • Cutting head 2D or 3D model • Arm support tube trackers both on the load and on the exhaust • Fiber laser resonator with power 1000 kw / 2000 kw / 3000 kw / 4000 kw, others on request • Possibility to mount the source brand that best suits the customer • Multi-load system • Programming through standard G-code, integrated CAD / CAM solution with the possibility of importing pre-existing pipe models, integrated drawing system, optimization and nesting of the pipe • 32 “display to follow the machining inside the machine during the work phases
