2D laser cutting machine TF220

3D laserfiber laserfor metal

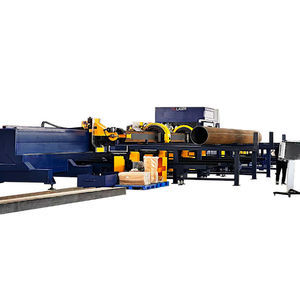

5-axis tube laser, fully automatic, designed for maximum productivity in processing tubes from 20 to 220mm in diameter and bar loading lengths from 6 to 12 meters. TF220 2D/3D offers excellent versatility of use in the processing of tubes and profiles with the most varied types of materials and thicknesses. In addition to straight and bevel cutting, it creates holes and slots, markings and engravings, tongue-and-groove joints, flaring, chamfering on sections of round, square and rectangular tubes, special boxed and elliptical profiles, open profiles such as UPN, IPE beams and corners, carbon steel, stainless steel, aluminum alloys and high-reflective materials. Using an advanced tracking and control system, the laser head can maintain a constant distance from the tube and adapt to curves, corners and other complex shapes. Fiber laser source with power from 1 to 3 kW, others on request based on the thicknesses to be cut. All phases of the programming process are managed by Almacam Tube, CAD-CAM software for cutting tubes and profiles. It combines working power with high cutting quality even on large thicknesses, the high speed and maximum precision resulting from the linear drive technology maximize the potential of the machine. With the bundle loader you can work independently, you can produce from bundles or load one or a few bars at a time. Optimal management of special and/or open profiles. Standard 4 meter unloading, to unload short or long pieces, separating the scraps. From the welding reader to remote cameras to the customization of loading and unloading, we put our solutions at your disposal to maximize your productivity.
