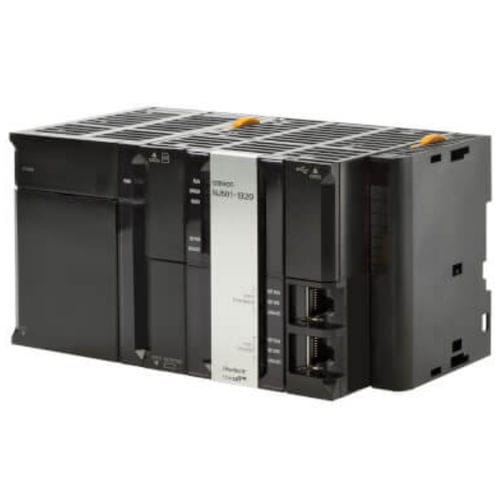

XY motion controller NJ5 seriesmulti-axisEthernetEtherCAT
Add to favorites
Compare this product
Characteristics
- Number of axes
- multi-axis, XY
- Signal type
- Ethernet, EtherCAT
- Technology
- advanced, CNC
- Product applications
- cutting, CNC, milling machine, lathe, for milling, for server
Description
The NJ5 series is a machine controller for logic sequence and motion that includes CPU options for advanced functions such as robotics and database connection.
-Fastest cycle time: 500 µs
-Number of axes: 64, 32, 16
-Synchronized motion core
-Functions: Logic sequence, Motion, CNC, Robotics, Database connection, SECS/GEM and OPC-UA
-Database direct connection in V2.0 is expanded with stored procedure calls and secure communications functionality
-Database direct connection: SQL client for server Microsoft SQL, Oracle, IBM DB2, MySQL, Firebird, PostgreSQL
-Delta, SCARA and Cartesian robots control
-CNC functionality: Ideal for XY cutting, milling, lathe and any other path-following application such as dispensing, bending, grinding and forming machines
-Multi-tasking
-Built-in EtherCAT and EtherNet/IP ports
-EtherCAT Ring topology is supported to maintain communications and control in case of a broken cable or device failure
Catalogs
NX1
38 Pages
