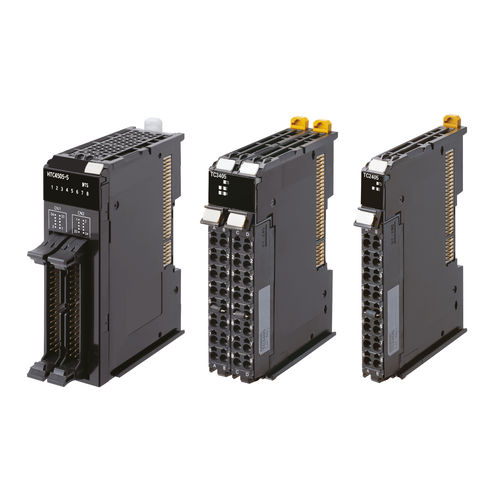

NX-TC is next generation controllers designed to achieve optimal and automatic temperature control without human intervention. NX-HTC makes one step further to prevent anomalies due to wrong machine assembly/maintenance and reduce man-hours spent to analyzing and fixing anomalies.
Adaptive control for self-optimization of control setting due to process changes
Specialized function for better sealing application (packaging) and for water-cooled extruders (plastic)
Easier integration thanks to ProfiNet, Ethernet-IP and EtherCAT fieldbus support
Monitor equipment and environmental changes, thanks to innovative temperature waveform digitalization function
Minimize scrap by exact control of seal-jaw temperature in horizontal/vertical flow wrappers machines (NX-TC only)
On a conventional sealing machine temperature sensors can often be located too far away from the sealing surface of the heating bar. This causes a difference between the temperature of the sealing surface and the temperature that was actually being controlled. This temperature difference and resulting sealing failures, increase as the packaging speed increases and also in correlation with thinner packaging materials or changing in ambient temperature.
Thanks to the NX-TC series, this issue is solved with the following approach:
bringing sensor closer to the sealing surface - thanks to special temperature sensor models for faster detection
