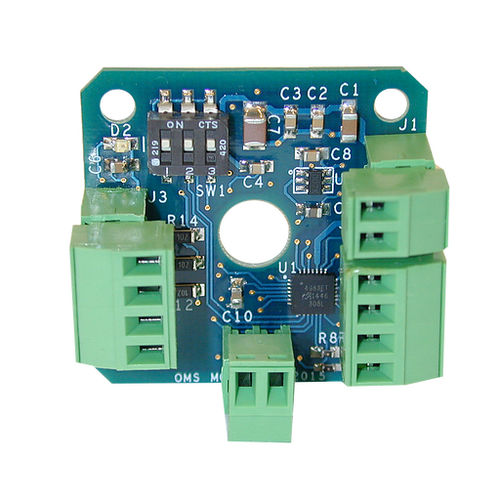

Stepper motor drive OMD17B

The OMD17b is an advanced stepper motor fractional step drive that supports selectable step size resolution from full to step up to 1/16 fractional step. Its small design is set up to mount on the back of a NEMA 17 size step motor for a compact solution for your motion control needs. Features: • Step resolutions include full, 1/2, 1/4, 1/8, & 1/16 • Single motor supply voltage +8V to +35V • 0 to 1.5 Amp phase current (adjustable with axial resistor) • Center mounting hole for linear actuator stepper motors • LED power indicator • Control voltage +5V to 20V • Easy wiring with screw-terminal connectors • Current-set resistor • No heat-sink required
