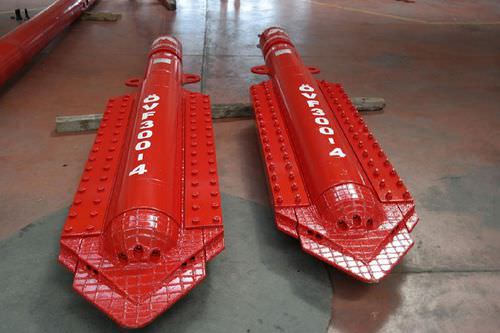

Vibroflotation probe OVF 300-4

When a vibroflotation machine is driven into loose ground, it creates a hole. Gravel particles of a certain size are then fed into the hole, either using the top feed or bottom feed method. A stone column is then produced by compressing the gravel with vibration. This increases the supporting strenght of soft and loose grounds and reduces liquefaction risk. Eccentric Moment (kgm)4 Frequency (rpm)3000/50 Centrifugal Force (kN)396 Power (kW)187,5 Weight (kg)2000 Height (H)3300 Width (W)348 Length (L)520 Power PackPP 265 Output (kW)195
