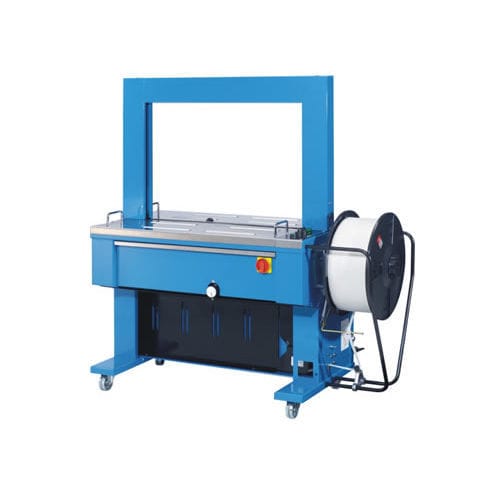

Automatic strapping machine SM 6000

for cardboard boxespackagefor polypropylene straps

Standard automatic strapping machine: Strapping a minute 26 Standard arc 850 x 600 dimensionable as required Strap tensioning from 10 to 70 Kgs. Mechanical regulation It works with polypropylene strap 9/12/15 mm. -thickness 063 (recommended) Working table high 810 mm. Working tops with steel roller Disobstructions serial RESET Start with pedal, button or ball micro on working table. Inside strap core 280 mm. (200 mm. If request) Mechanical group and arch completely in steel. Control panel located on the operator side Standard voltage 220V monophase/50 Hz./1,2 Kw. Overall dimensions (L x W x H) 1430 x 620 x 1540 mm. Machine weight 220 kg. Security standards according to CE regulations. Max package weight 100 Kg Minimum package 130 X 20 (W x H) Standard colour light-blue OPTIONAL SM 6000 S Frame in stainless steel SUS 304 Smooth table Without rollers Arches Dimensionable if request with addictions of 200 mm. Double pedal For use on both sides with flying pedal Voltage 380 V triphase
