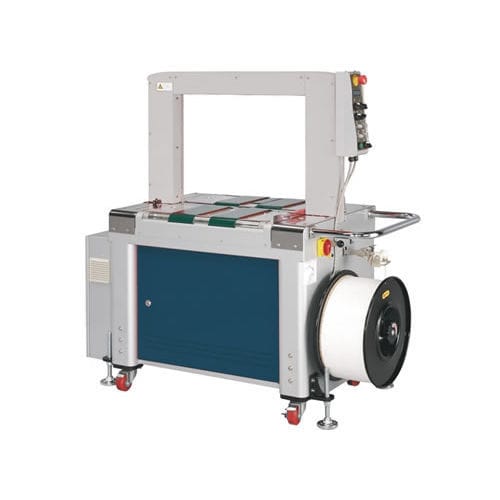

Automatic strapping machine SM 702 B series

for cardboard boxespackagefor polypropylene straps

High productivity Belt driven table automatic strapping machine: Standard arch 550x500 or 650x500 (W x H) Electronical strap tensioning from 1 to 40 Kgs. Single, double or timed strapping. Function just for transit Charge and change roll from the outside Close loop ejector in case of strapping with no package Opens wide for quick inspection and maintenance Speed belt from 10 to 60 m/min. adjustable with inverter Working table height adjustable from 800 to 900 mm. Minimum dimensions coils 130 x 120 x 20 (L x W x H) condizioni di reggiatura intervallo pacchi minimo 200 mm Coils weight 10 to 35 Kgs. (recommended opt press for lower weights) Productivity 20 coils/min with double parallel strapping productivity 40 coils/min with single central strapping Inside strap core 200 mm. Use strap 5/9/12 mm Lateral protection barriers panels OPTIONAL SM 702 BP Machine equipped with press coil held adjustable from 10 to 50 Kg SM 702 BS Stainless steel machine Protections Lateral protection barriers panels Adjustable height working table from 50 to 900 mm PLC Electronical management with PLC siemens
