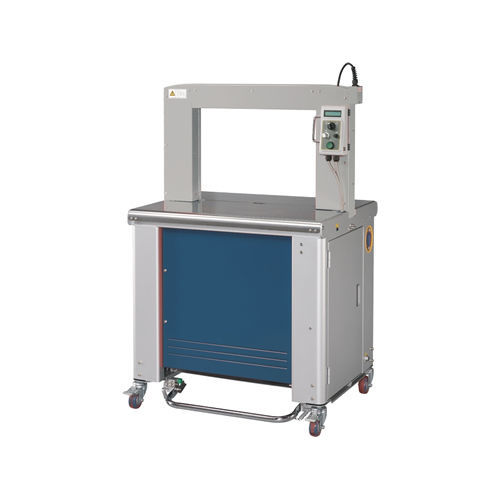

Automatic strapping machine SM 702 59

for cardboard boxespackagefor polypropylene straps

High speed 5 mm automatic strapping machine: over 65 strapping a minute strap 5 x 045 inside core 200 diam. external 480 mm. Standard arch 550 x 400 Strap tensioning from 0 to 32 Kgs. Electronically adjustable Soft tensioning for delicate parcels Automatic disobstruction and loop ejection Start with fixed pedal or button control panel side Automatic charge and change roll on the side of the machine Working table height adjustable from 820 to 920 mm. Opens wide for quick inspection and maintenance Minimum package dimension 70 x 20 mm (W x H) Standard voltage 220V monophase/50 Hz./0,50 Kw. Machine dimensions 840 x 650 x 1305 (L x P x H) weight 150 Kg. Four wheels (two of them are locking) Series fixed frontal bar pedal on each model OPTIONAL arches According to the list photocell On working table SQ6 SQ7 Intelligent disobstuction Rear bar Rear long Bar pedal SM 702 9 mm. Fo use with strap 9 x 050 core 200 SM 702 S Stainless steel version SM 702 P Double parallel press version SM 702 RS Reduced group 5 or 9 arch 550x400 rectangles 50x10 rounds diam 34x2
