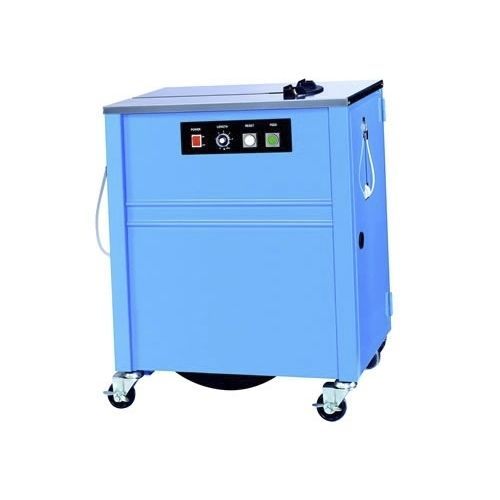

Semi-automatic strapping machine SM 203package220V single phaseelectric
Add to favorites
Compare this product
Characteristics
- Type
- semi-automatic
- Product applications
- package
- Power supply
- 220V single phase
- Other characteristics
- electric, mobile
- Overall height
805 cm
(316.9 in)- Overall width
632 cm
(248.8 in)- Depth
422 mm
(17 in)- Package width
80 mm
(3.15 in)- Package height
30 mm
(1.18 in)- Strap width
9 mm, 12 mm, 15 mm
(0.354 in, 0.472 in, 0.591 in)- Power
0.5 kW
(0.68 hp)- Clamping tension
Max.: 45 kg
(99.21 lb)Min.: 0.6 kg
(1.32 lb)- Weight
85 kg
(187.39 lb)
Description
Semiautomatic strapping machine reduced frame:
It works with strap 9/12/15 mm. Core 200 o 280 mm.
Working table high 805 mm. fixed
Strap tensioning from 0,6 to 45 Kgs. Externally adjustable
Standard voltage 220V monophase/50 Hz./0,5 Kw.
Machine dimensions 632 x 422 x 805 (L x P x H)
Standard color light blue
Series reset button
Electric operator controls 24 V
Machine weight 85 Kg.
Minimum package 80 X 30 (W x H)
Catalogs
SM 203
1 Pages
