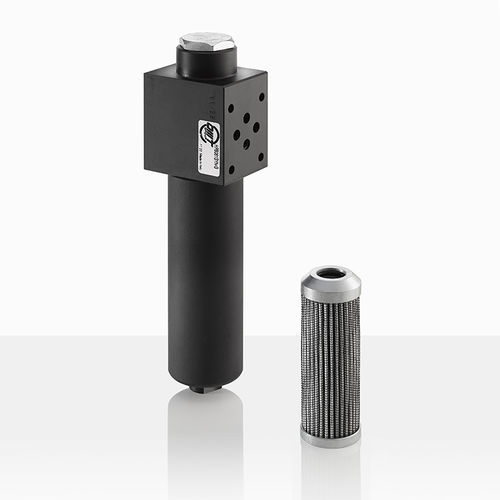

Hydraulic filter HPBcartridgepressureindustrial
Add to favorites
Compare this product
Characteristics
- Designed for
- hydraulic
- Filtration element
- cartridge
- Filtration method
- pressure
- Applications
- industrial, high-pressure
- Material
- steel, cast iron
- Operating pressure
Min.: 0 bar
(0 psi)Max.: 315 bar
(4,568.689 psi)- Filtration size
3 µm
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 90 l/min
(23.775 us gal/min)- Fluid temperature
Min.: -20 °C
(-4 °F)Max.: 95 °C
(203 °F)
Description
The series HPB is suitable to be used on pressure lines up to 315bar.
They have three sizes and have heads in spheroidal cast iron with CETOP 03 and CETOP 05 connections.
The bodies are made of steel.
The degree of filtration is until 3 micron;
