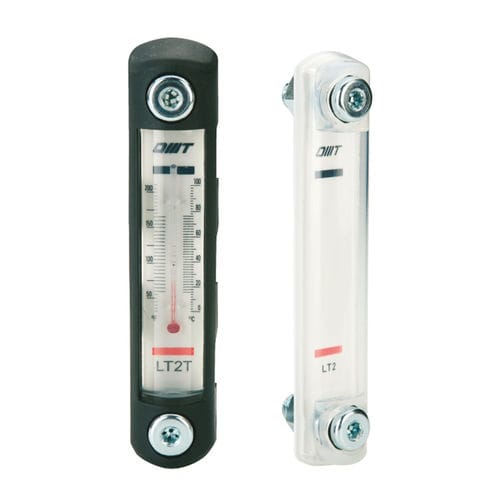

Oil level gauge L series

bypassfor tank

Visual level gauges (LT series), only one nylon piece, with or without nylon protection. Visual level gauges (LO series), made of steel, with or without thermometer. LV series visual level gauges permit direct verification of the fluid level contained into the tank. Distance “D” stated in the enclosed table, indicates the distance of the fixing holes whose diameter is “M”. The design allows for an error of up to 4 mm, on the fixing hole centres during assembly; a new nylon black cover coating entirely the level gauge. These level gauges can be used with mineral oils, and various fluids. With the exception of model LV1 these gauges are also available with a thermometer. Materials Heads: glass reinforced nylon Transparent: “perbex” Bolts: galvanized steel Nuts: galvanized steel External protection by glass reinforced nylon Temperature range from -20°C to +80°C Max. pressure 1 bar Torque bolt tightening 10 Nm Thermometer Bulb type with double calibrated scale °C and °F Thermometer scale from 0°C to +80°C (from 32°F to 176°F)
