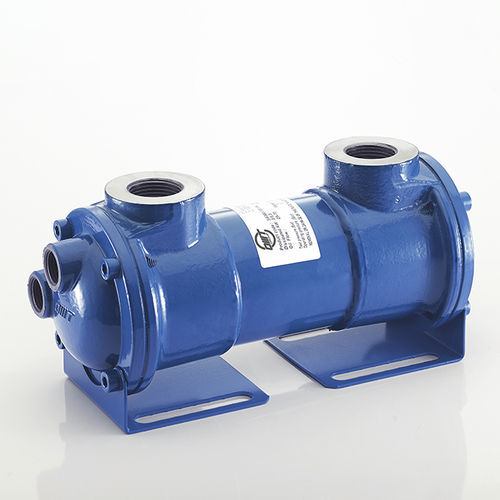

Shell and tube heat exchanger SA serieswater/oilcoppernickel
Add to favorites
Compare this product
Characteristics
- Type
- shell and tube
- Fluid
- water/oil
- Material
- copper, nickel, steel
- Other characteristics
- compact
- Applications
- industrial, for hydraulic systems, for marine applications
- Power
Max.: 23,000 W
(78,479.22 BTU/h)Min.: 4,000 W
(13,648.56 BTU/h)- Operating pressure
Max.: 800,000 Pa
(116.03 psi)Min.: 0 Pa
(0 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: 10 °C
(50 °F)
Description
The water-oil heat exchangers SA series “shell and tube” are manufactured based on the most advanced technologies in order to make them very reliable even in hard working conditions.
The water-oil heat exchangers SA series “shell and tube” are manufactured based on the most advanced technologies in order to make them very reliable even in hard working conditions.
The SA series has two subseries: the standard one made of CuDHP (copper) tubes for all industrial applications and the sea water one using CuproNichel 90/10 tubes.
On demand special solutions can be provided.
