Gasketed plate heat exchanger GG003liquid/liquidtitaniumsteel
Add to favorites
Compare this product
Characteristics
- Type
- gasketed plate
- Fluid
- liquid/liquid
- Material
- titanium, steel
- Operating pressure
10 bar, 16 bar
(145.04 psi, 232.06 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 120 °C
(248 °F)
Description
PLATE AND FRAME STANDARD

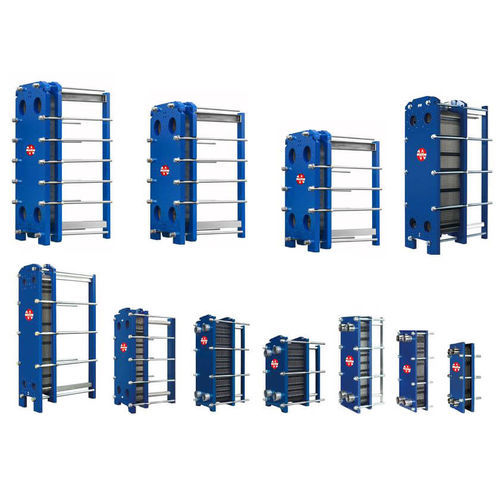

Gasketed Plate & Frame heat exchangers standard line GG
The Onda Gasketed Plate Heat Exchangers are available in various models and dimensions and always offer the best solution to a great variety of heat exchange applications coming from both the HVAC and the industry such as the powerindustry, marine, chemical, heavy industry etc., as well as cogeneration and district heating-and cooling applications.
Materials:
Frame: Carbon steel, painted
Plates: AISI 316L / TITANIUM / AISI 304L
Gaskets: NBR (110° C max) / EPDM (140°C max)
Tightening bolts: galvanized steel
Connections: AISI 304 / AISI 316 / PVC / POM-C
Optional:
Insulations available on request
