Shell and tube evaporator HDE series
laboratory

Shell and tube evaporator - HDE series - Onda - laboratory
Shell and tube evaporator - HDE series - Onda - laboratory
Add to favorites
Compare this product


Characteristics

Type
shell and tube
Laboratory/process
laboratory
Electrical output

Min.: 29,000 W

Max.: 1,314,000 W

Description

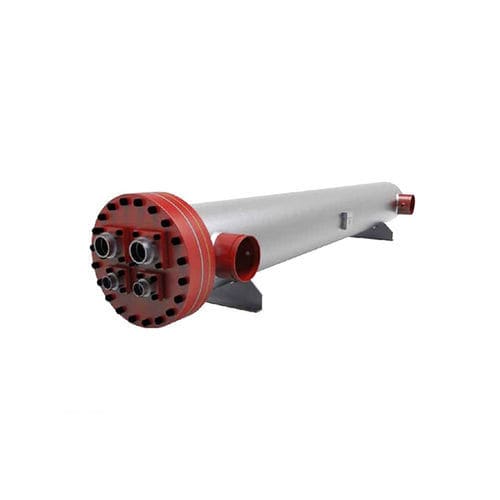

SHELL AND TUBE EVAPORATOR HDE HDE is a dry expansion evaporator with hairpin tubes (BEU) optimized for high pressure refrigerants such as R32, R454B and R410A. HDE features two basic designs: – evaporator function in installations only cooling mode – evaporator and condenser function in installations such as heat pumps or multi-purpose units for cooling and heating mode HDE product family replaces the HPE and HBE family models with the following benefits – Design pressure at 49 barg / T 150 ° C for condenser function mode – Compact design with length approx -20% vs HBE and -30% vs HPE – Multi circuits 3,4 available up to Dsh 508mm – Improved design for evaporator / condenser mode at high pressures and temperatures

Catalogs

*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
