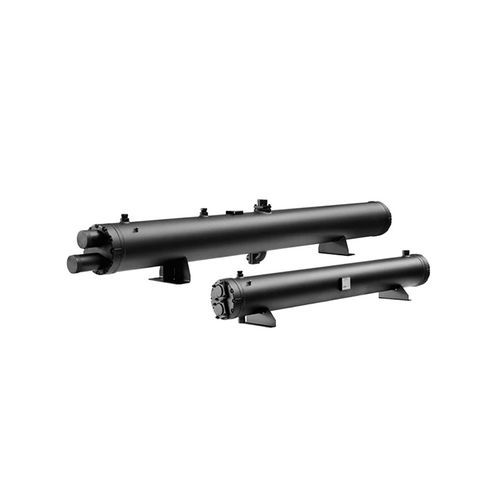

Shell and tube condenser B 17.301

process

CONDENSER B (EUROPE MARKET) The Onda “ B “condenser product family has been designed for air conditioning and process cooling applications using HFC and HFO refrigerants as primary fluid, the secondary fluid is usually water or glycols. Thanks to an high thermal performance tube the B condenser has a compact design reducing the refrigerant charge of about – 35% vs traditional condensers with a competitive market price. The capacity range is from 50 to 1500 kW, custom models are also available for higher capacity demands. Two model range are available at 30 and 45 barg on shell side, tube side is at 10 bargThe standard configuration is 2 passes with tube length 1850 mm.
